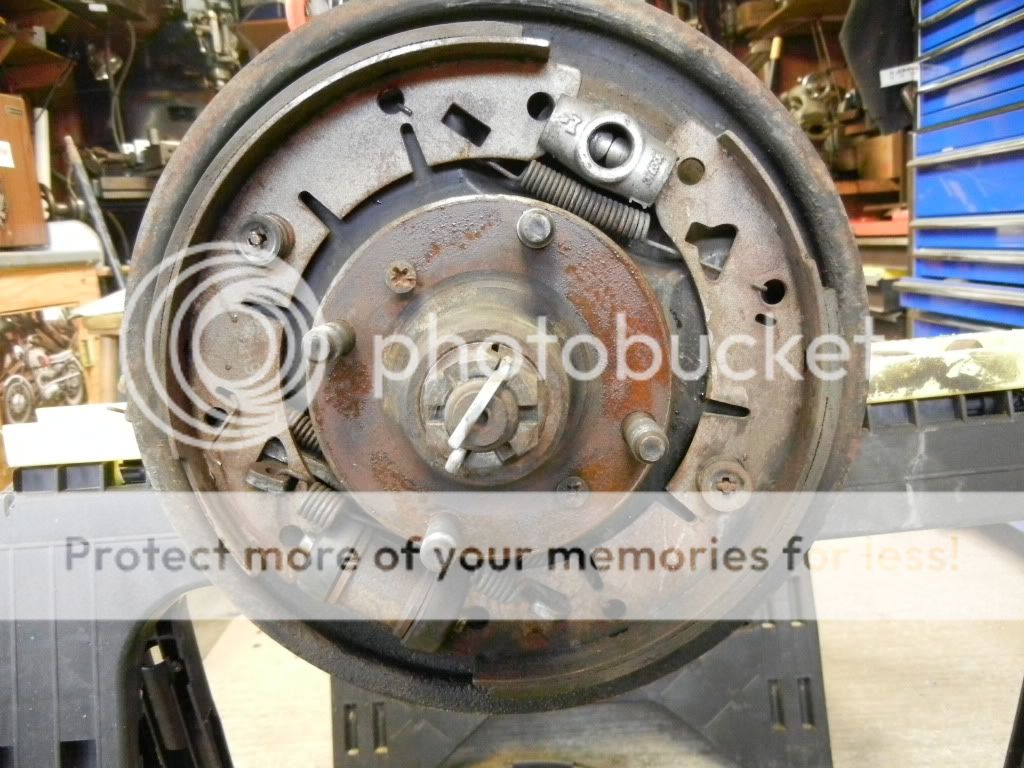

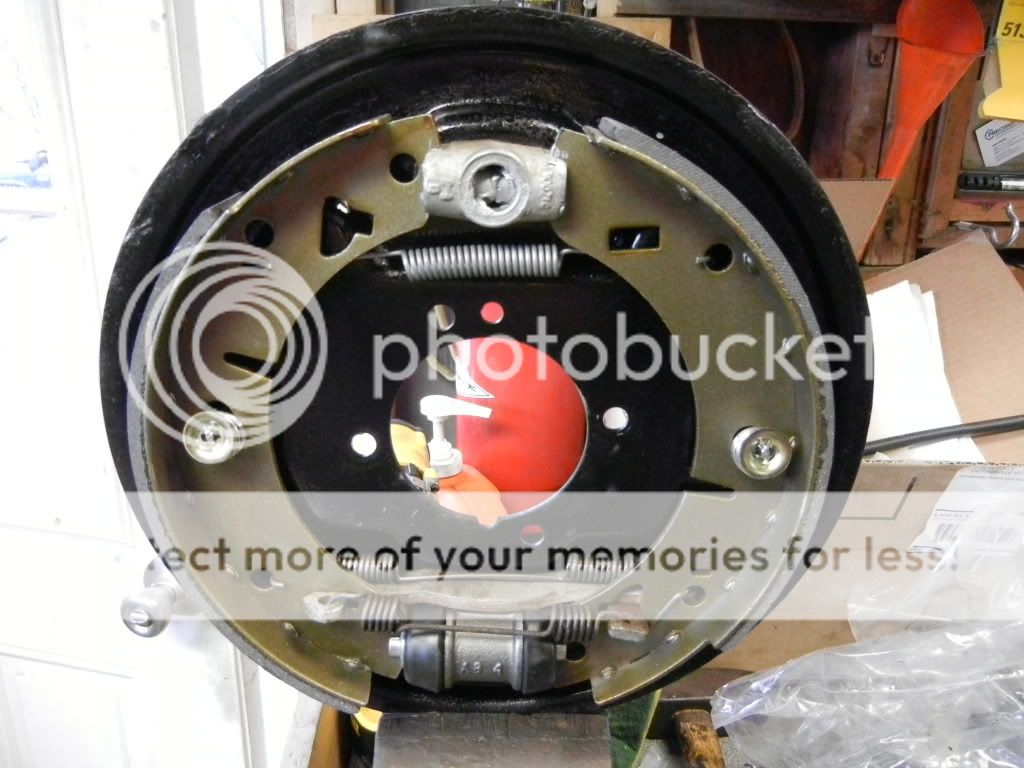

Brake Shoe Orientation. sign up for the raybestos brake stop to access premium training. in this video i'll show you how to adjust your drum brakes using the star. note the orientation of the shoes, with the blank part on the leading edge and keyhole cutout for the adjusters closest to the slave. it's crucial to place the brake shoes facing the right direction. Reversing the primary and secondary shoes results in noise, brake drag, and a pull in the. when the topic is drum brakes, there seems to be a lack of a consensus as to where the larger shoe should be. the service manual says the primary (bigger) brake shoe goes toward the front, but the current set up on the old brakes has them toward. the first graphic indicates it's the right rear but it would depend on what they are indicating is the right rear (looking from the front of.
from studebaker-info.org
the service manual says the primary (bigger) brake shoe goes toward the front, but the current set up on the old brakes has them toward. it's crucial to place the brake shoes facing the right direction. in this video i'll show you how to adjust your drum brakes using the star. the first graphic indicates it's the right rear but it would depend on what they are indicating is the right rear (looking from the front of. sign up for the raybestos brake stop to access premium training. when the topic is drum brakes, there seems to be a lack of a consensus as to where the larger shoe should be. Reversing the primary and secondary shoes results in noise, brake drag, and a pull in the. note the orientation of the shoes, with the blank part on the leading edge and keyhole cutout for the adjusters closest to the slave.
Studebaker Tech Brakes, Primary Shoe
Brake Shoe Orientation in this video i'll show you how to adjust your drum brakes using the star. when the topic is drum brakes, there seems to be a lack of a consensus as to where the larger shoe should be. the first graphic indicates it's the right rear but it would depend on what they are indicating is the right rear (looking from the front of. the service manual says the primary (bigger) brake shoe goes toward the front, but the current set up on the old brakes has them toward. Reversing the primary and secondary shoes results in noise, brake drag, and a pull in the. sign up for the raybestos brake stop to access premium training. in this video i'll show you how to adjust your drum brakes using the star. note the orientation of the shoes, with the blank part on the leading edge and keyhole cutout for the adjusters closest to the slave. it's crucial to place the brake shoes facing the right direction.
